KD-33 U-shape Tetra Pack Packing Machine
The U shape Tetra Pak Packing Machine is designed to bend both Plastic and Paper drinking straws into a “U” shape before automatically packaging them in a row. It consists of a driving motor, film release and reel devices, driving system, and more.
Key Features:
– Heating rollers and steel molds are crafted from aluminum.
– Enables packing of single straws in a row and simultaneous bending, filling, and packing.
– High speed and substantial capacity.
– Ensures all sharp ends are uniformly packed in the same direction.

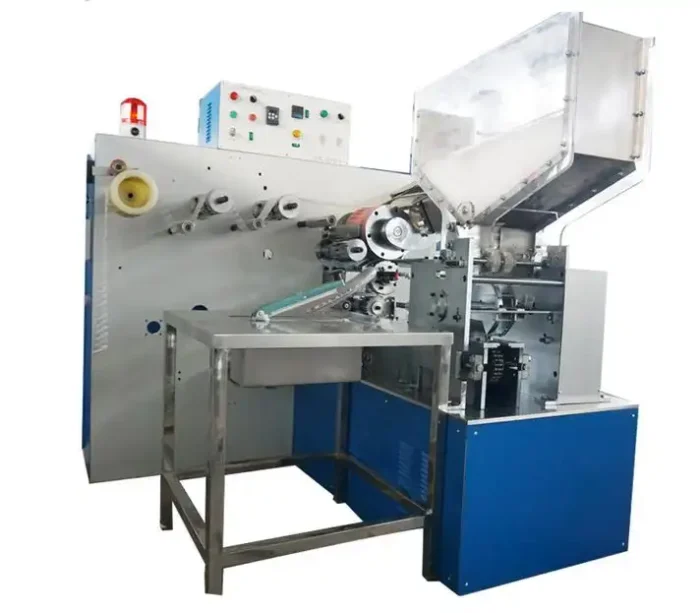

KD-33 U-shape Tetra Pack Packing Machine

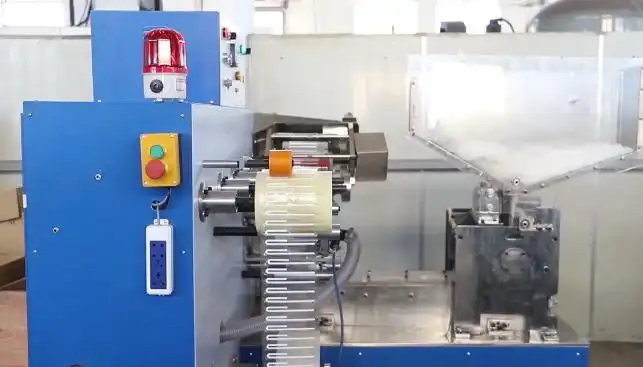

U shape tetra drinking straw packing machines
| SPECIFICATIONS | |
| Item | KD-33 |
| Capability | 700～900pcs/min |
| Main motor | 2.2 kW (VFD) |
| Vacuum motor | 0.75kW |
| Flotsam motor | 0.37kW |
| Heating power | 1.5kW |
| Wrapping material | BOPP film |
| Width of film | 95～160mm |
| Thickness of film | 0.015～0.018mm |
| Diameter of straw | Φ4mm |
| Thickness of straw | 0.18～0.20mm |
| Length of U-shape model | 90mm/105mm/128mm |
| Machine weight | 2000KG |
| Dimension | 1900mm（W)×2000mm (L) |
| Warranty | 1 year |
| Machine Working Time | 24 hours * 7 days |
| Power Voltage | 220V,380V,440V,480V(Customized based on request) |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
PP drinking straw machines warehouse
Shipment
shipment of plastic bag machine
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
Loading Drinking Straw Machine Warehouse into container
instalment service
install machines in customer factory
Machine parts supplier
Our Main parts cooperator as following brand,but standard parts all made from China.
Material supplier
How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as
Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
